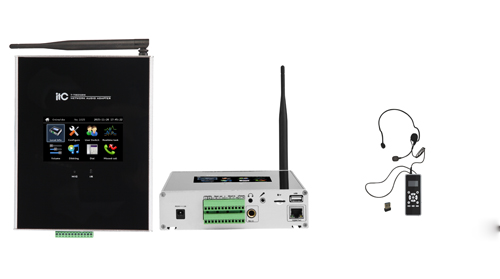

T-7805BM
Specification:
|
Model |
T-7805BM |
|
Network interface |
Standard RJ45 input |
|
Transmission rate |
100Mbps |
|
Communication protocol |
TCP/IP, UDP, IGMP(multicast),IETF SIP |
|
Audio format |
Mp3, WMA, WAV |
|
Audio mode |
16-bit CD sound quality |
|
Sampling rate |
8K~48KHz |
|
AUX input |
1 group |
|
AUX sensitivity |
350mV |
|
MIC input |
1 group (TRS interface or 3.5mm interface is optional) |
|
MIC sensitivity |
TRS interface 5Mv, 3.5mm interface 10mV |
|
Monitor MIC input |
1 group |
|
Monitor MIC sensitivity |
10mV |
|
Line out output |
1 group |
|
Line out level/impedance |
1000mV/470Ω |
|
EMC input |
1 group |
|
EMC sensitivity |
775mV |
|
USB |
Support up to 4T USB device; load <0.1A |
|
SD |
Support up to 128G/SDXC card |
|
Headphone output interface |
3.5mm interface |
|
Headphone load |
32Ω |
|
Power consumption |
≤70W |
|
Standby power consumption |
<3W |
|
Frequency response |
80Hz~16KHz -3dB/+1dB |
|
THD |
≤1% |
|
SNR |
>65dB |
|
Short-circuit input |
0V/3.3V, support dry contact input |
|
Short-circuit output |
Maximum 3A/30VDC dry contact output |
|
Power supply |
~190-240V 50-60Hz; DC24V/2A |
|
Working temperature |
5℃~40℃ |
|
Working humidity |
20%~80% relative humidity, no condensation |
|
Size |
170×210×45mm |
|
Weight |
2Kg
|
