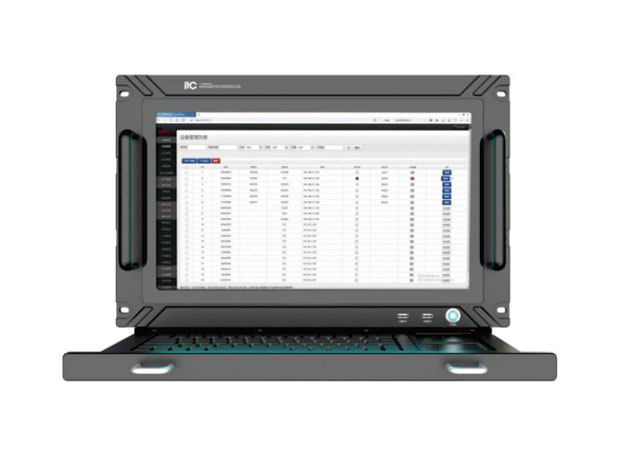

T-7800H
Specification：
|
Model |
T-7800H |
|
Screen |
17.3 inches |
|
Resolution |
1920(H)×1080(V) |
|
Brightness |
300cd/m² |
|
Viewing angle |
89/89/89/89 (up/down/left/right) |
|
Touch screen |
Ten-point industrial standard capacitive touch screen |
|
CPU |
Intel®Xeon®processorE5-2600, Intel®Xeon®processorE5-2600v2, DualSocketLGA-2011(SocketR3) CPU, standard E5-2643V2×2CPU (CPU clock speed 3.5GHz, six cores and twelve threads) |
|
Chipset |
C602 |
|
BIOS |
16MBSPIAMIBIOS®SMFlashBIOS |
|
RAM |
8×DIMM, up to 512GB RECC DDR3/1600MHz, standard 2×16GBRECC DDR3/1600MHz |
|
Display |
NuvotonBMCVideoController (MatroxG200eW), standard G2101G independent graphics card |
|
Extension slot |
3*PCIE3.0x16, 1*PCIE2.0x4 (inx8), 1*PCIE2.0x1, 1*PCI |
|
Network function |
2×10/100/1000Mbps adaptive network port, support remote wake-up |
|
Hard Disk Bit |
Support 2×2.5” and 2×3.5” hard disk bits, standard 1×128GSSD+1T 3.5-inch enterprise hard disk |
|
I/O interface |
1 HDMI and 1 DVI video output port, 2×LAN, support 10/100/1000Mbps (82574), 1×IPMI, 6×COMRS232, 6×USB2.0, 2×audio output interfaces, 1×TRIGGERINPUT |
|
Sound card |
7.1 sound card |
|
Working temperature |
-10℃-60℃, 5%～95% (non-condensing state) |
|
Storage temperature |
-20℃-70℃, 5%～95% (non-condensing state) |
|
Power supply |
AC100-220VATX300W |
|
ESD |
Contact 4kV, air gap 6kV electromagnetic interference |
|
Anti-vibration |
GB/T2423.10 |
|
Housing material |
High-strength aluminum alloy panel |
|
Installation method |
Rack-mount or desktop |
|
Software operating platform |
ubuntu |
|
Size |
484×353.5×339.43mm (W×H×D) |
|
Net weight |
19.9kg |
|
Gross weight |
22.3kg |
