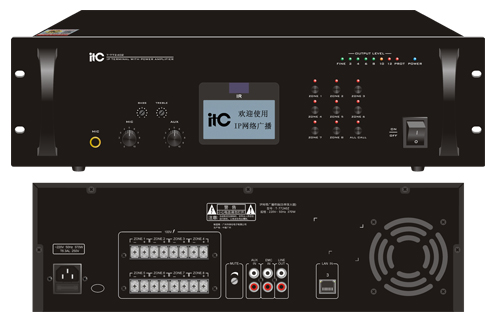

T-77500Z
Specifications:
|
Model |
T-77240Z |
T-77350Z |
T-77500Z |
|||
|
Network Interface |
Standard RJ45 input |
|||||
|
Transmission Rate |
100Mbps |
|||||
|
Support Protocol |
TCP/IP, UDP |
|||||
|
Audio Format |
MP3 |
|||||
|
Audio Mode |
16 bits CD sound quality |
|||||
|
Sampling Rate |
8KHz~48KHz |
|||||
|
EMC Input Sensitivity |
775mV (Unbalance) |
|||||
|
AUX Input Sensitivity |
350mV (Unbalance) |
|||||
|
MIC Input Sensitivity |
5mV (Unbalance) |
|||||
|
AUX Output Amplitude |
1000mV 2 RCA output |
|||||
|
AUX Output Impedance |
470Ω |
|||||
|
Treble Adjustment Range |
±10dB |
|||||
|
Bass Adjustment Range |
±10dB |
|||||
|
Rated Power |
240W |
350W |
500W |
|||
|
Power Consumption |
370W |
540W |
750W |
|||
|
Standby Power |
<10W |
|||||
|
Consumption |
||||||
|
Frequency Response |
80Hz~16KHz +1/-3dB |
|||||
|
THD |
≤1% |
|||||
|
SNR |
>65dB |
|||||
|
Output Method |
100V constant pressure output |
|||||
|
Circuit Protection |
DC Output, Overload, Overtemperature, |
|||||
|
Short Circuit Protection Circuit |
||||||
|
Working Temperature |
5℃~40℃ |
|||||
|
Working Environment |
20% ~80% relative humidity, no condensation |
|||||
|
Humidity |
||||||
|
Input Power |
~220V 50Hz |
|||||
|
Dimension |
484 x 359 x 132mm |
|||||
|
Weight |
13.7Kg |
15.5Kg |
18Kg |
|||
