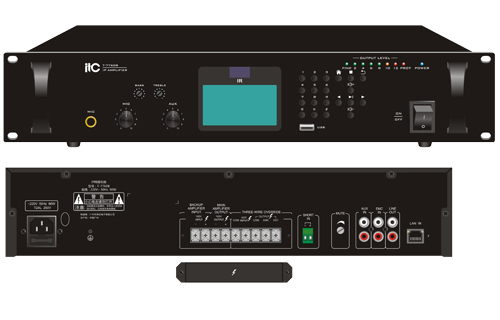

T-77240B
Specifications:
|
Model |
T-7760B |
T-7120B |
T-77240B |
T-77350B |
T-77500B |
T-77650B |
||||||
|
Network Interface |
standard RJ45 input |
|||||||||||
|
Transmission Rate |
100Mbps |
|||||||||||
|
Protocol Support |
TCP/IP,UDP |
|||||||||||
|
Audio Format |
MP3 |
|||||||||||
|
Audio Mode |
16 bits CD sound quality |
|||||||||||
|
Sampling Rate |
8KHz~48KHz |
|||||||||||
|
EMC Input Sensitivity |
775mV (Unbalance) |
|||||||||||
|
AUX Input Sensitivity |
350mV (Unbalance) |
|||||||||||
|
MIC Input Sensitivity |
5mV (Unbalance) |
|||||||||||
|
AUX Output Amplitude |
1000mV 2 lotus flower output interface |
|||||||||||
|
AUX Output Impedance |
470Ω |
|||||||||||
|
Treble Adjustment Range |
±10dB |
|||||||||||
|
Bass Adjustment Range |
±10dB |
|||||||||||
|
USB Interface |
Maximum support 16G memory USB access |
|||||||||||
|
Rated Power |
60W |
120W |
240W |
350W |
500W |
650W |
||||||
|
Power Consumption |
90W |
180W |
370W |
540W |
750W |
950W |
||||||
|
Standby Power Consumption |
||||||||||||
|
Frequency Response |
80Hz~16KHz +1/-3dB |
|||||||||||
|
Harmonic Distortion |
≤1% |
|||||||||||
|
SNR |
>65dB |
|||||||||||
|
Output Method |
100V constant voltage output |
|||||||||||
|
Short Circuit Input |
Dry contact input |
|||||||||||
|
Circuit Protection |
DC output, overload, over temperature, short circuit protection |
|||||||||||
|
Working Temperature |
5℃~40℃ |
|||||||||||
|
Working Environment Humidity |
20%~80% relative humidity, no condensation |
|||||||||||
|
Power Input |
~220V 50Hz |
|||||||||||
|
Size |
484 x 359 x 132mm |
|||||||||||
|
Weight |
6.8kg |
6.9kg
|
||||||||||
