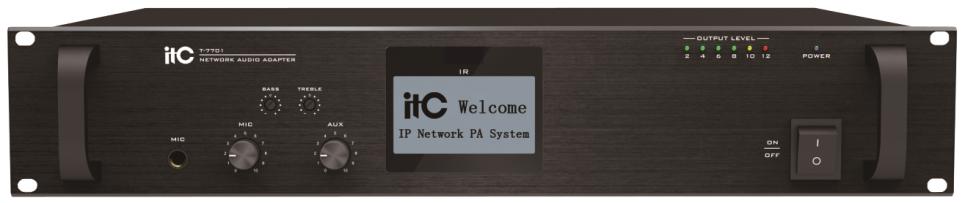

T-7701
Economic Rack Mount IP Network Audio Adapter
Description
Specifications:
|
Model |
T-7701 |
|
Network interface |
Standard RJ45 input |
|
Transmission Rate |
100Mbps |
|
Support Protocol |
TCP/IP,UDP,IGMP(Multicast) |
|
Audio Format |
MP3 |
|
Audio Mode |
16 digit CD level |
|
Sampling Frequency |
8K~48KHz |
|
EMC Input Sensitivity |
775mV (Unbalance) |
|
AUX Input Sensitivity |
350mV (Unbalance) |
|
MIC Input Sensitivity |
5mV (Unbalance) |
|
AUXoutput amplitude |
1000mV 2 road lotus output interface |
|
AUXoutput impedance |
470Ω |
|
Treble Boost, Attenuation |
±10dB |
|
Bass Boost, Attenuation |
±10dB |
|
Frequency Response |
80Hz~16KHz |
|
USB Interface |
Support max 16G USB |
|
Power Consumption |
≤2000W |
|
THD Ratio |
THD≤3% |
|
S/N Temperature |
>65dB |
|
Environmental |
5℃~40℃ |
|
Environment Humidity |
20%~80% Relative humidity, |
|
without condensation |
|
|
Power Supply |
~220V 50Hz |
|
Size |
484×303×88mm |
|
Weight |
5.2Kg |
