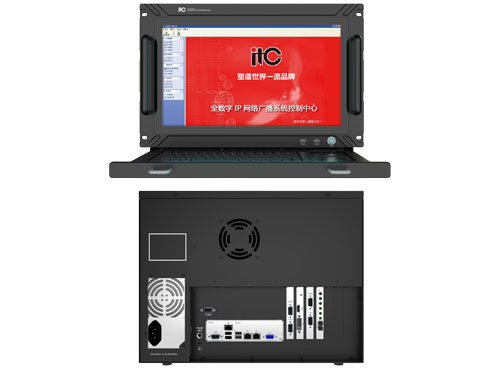

T-6700H

Screen

17.3 inches

Resolution

1920(H)×1080(V)

Brightness

300cd/m²

Viewing angle

89/89/89/89 (up/down/left/right)

Touch screen

Ten-point industrial standard capacitive touch screen

CPU

Intel®Xeon®processorE5-2600, Intel®Xeon®processorE5-2600v2, DualSocketLGA-2011(SocketR3)CPU, standard E5-2643V2×2CPU(main frequency 3.5GHz,six cores and twelve threads)

BIOS

16MBSPIAMIBIOS®SMFlashBIOS

RAM

8×DIMM, up to 512GB RECC DDR3/1600MHz, standard 2×16GBRECC DDR3/1600MHz

Display

NuvotonBMC Video Controller (MatroxG200eW), standard G2101G independent display

Extension slot

3*PCIE3.0x16, 1*PCIE2.0x4 (inx8), 1*PCIE2.0x1, 1*PCI

Network feature

2×10/100/1000Mbps adaptive network port, support remote wake-up

Hard Disk Bit

Supports 2×2.5” and 2×3.5” hard disks, standard 1×128GSSD+1T 3.5-inch enterprise hard disk

I/O interface

1-channel HDMI and 1-channel DVI video output interface, 2×LAN, support 10/100/1000Mbps (82574), 1×IPMI, 6×COMRS232, 6×USB2.0, 2×audio output interfaces, 1×TRIGGERINPUT

Sound card

7.1 sound card

Operating temperature

-10℃-60℃, 5%~95% (non-condensing state)

Storage temperature

-20℃-70℃, 5%~95% (non-condensing state)

Power supply

AC100-220VATX300W

ESD

Contact 4kV, air gap 6kV electromagnetic interference

Anti-vibration

GB/T2423.10

Cabinet material

High-strength aluminum alloy panel

Installation method

Rack or desktop

Software operating platform

Windows server 2008

Dimension (W×H×D)

484×353.5×339.43 (mm)

Net weight

20kg

Gross weight

22.1kg
