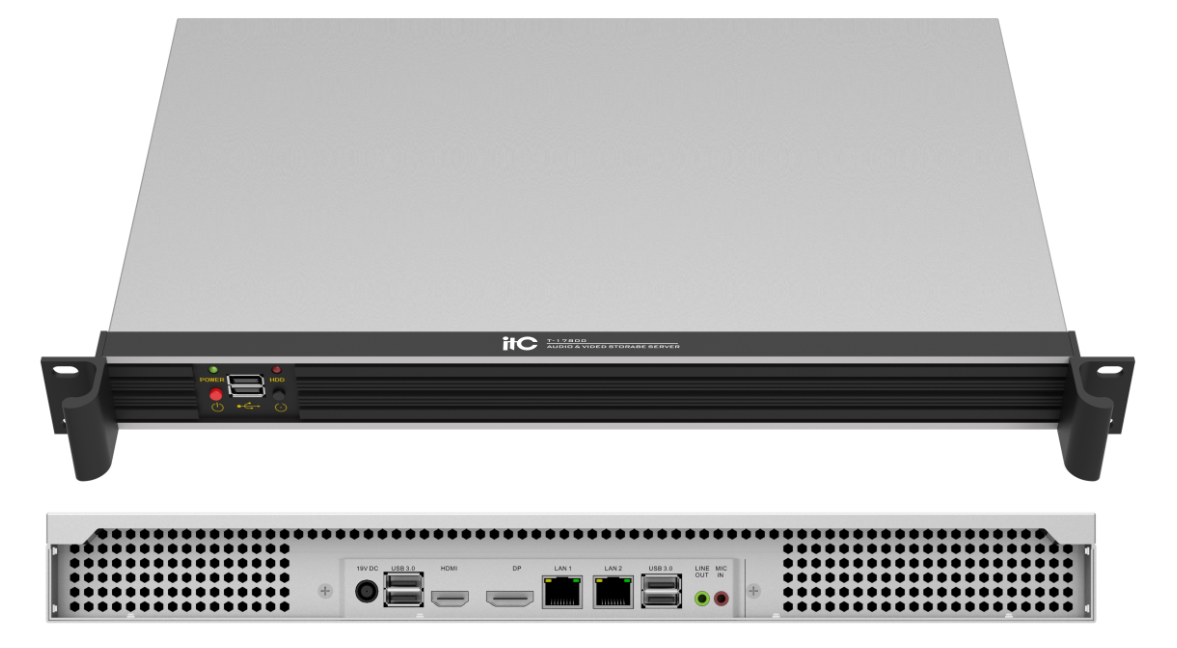

T-17800
Specifications:
Model |
T-17800 |
Motherboard |
ASUS H310T motherboard - DDR4-32G, support |
remote management; support Raid0, 1, 5, 10. |
|
Hard disk |
Seagate-ST1000DM010-1TB-SATA interface; |
support for maximum 16T storage capacity |
|
RAM |
Memory stick Kingston-HX421S13IB/4 (the |
capacity will continue to increase due to |
|
continuous product upgrades) |
|
Network card |
Realtek RTL8103EL, 1000M. Dual network card; |
Realtek RTL8103EL, 1000M |
|
CPU |
CPU-Intel-I3-6100 |
System audio signal sensitivity |
MIC IN: 280mV |
System audio signal SNR |
LINE OUT: 85dB |
System audio signal standard |
0dBV |
output level |
|
System audio signal distortion |
1KHz <0.5% |
Input power |
DC 19V |
Power consumption |
500W industrial server power supply |
MTBF |
100,000 hours |
Hardware detection |
Fault/error/overload and alarm (including disk/ |
RAID/power/fan/temperature/IO performance.) |
|
Working temperature |
-10℃~60℃ |
Working environment humidity |
20% to 80% relative humidity, no condensation |
Size(LxWxH) |
550×440×44 mm |
weight |
3.5Kg |
Standard interface |
Built-in 6 3.0USB ports, 1 MIC IN port, |
1 LINE OUT port; 1 HDMI port, 1 COM port |
|
Software system platform |
linux
|
