ATW-T5202

ATW-T5202

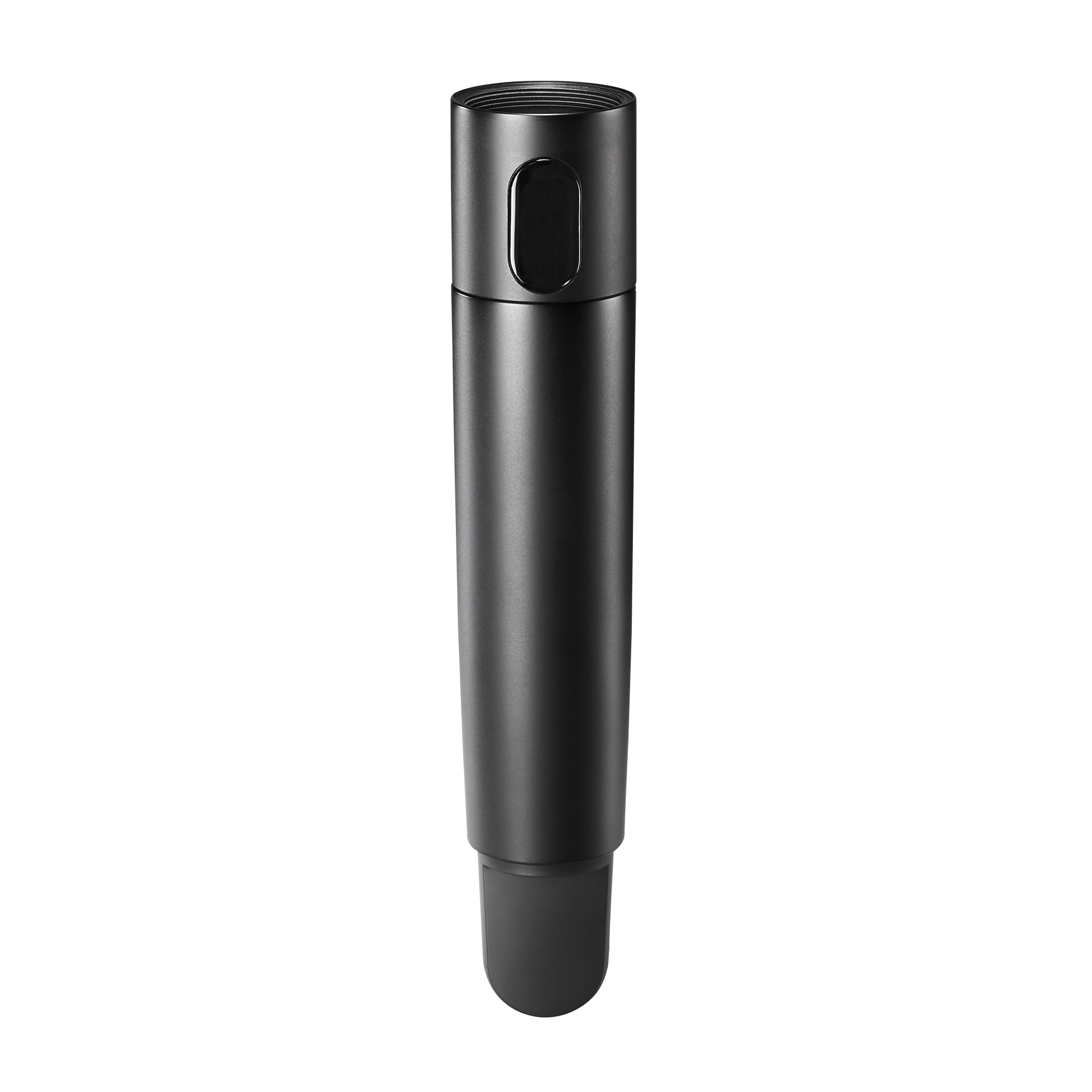

Audio-Technica’s third-generation 5000 Series wireless Handheld Transmitter

Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

ATW-T5202 handheld transmitter for use with the 5000 Series offers the highest-quality wireless live sound, with dual-compander circuitry that processes high and low frequencies separately. The transmitter features rugged, ergonomic metal body, highly visible OLED screen (switchable between standard and performance views to highlight key metering), programmable features, soft-touch controls, and switchable RF power (2 mW/10 mW/50 mW). Available in three different frequency ranges – DE1 (470–590 MHz), EG1 (580–700 MHz) and GH1 (700–820) – to provide complete coverage of the receiver’s bandwidth. The ATW-T5202 includes a high-pass filter and an industry-standard thread mount that allows for the use of six interchangeable A-T microphone capsules, as well as other compatible capsules. More features are the auto squelch function which automatically adjusts the squelch setting to maximize operating range while minimizing potential interference and a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference. Software enables remote monitoring and control of the wireless system.

Two receivers are available for use with the 5000 Series: ATW-R5220 with two balanced XLR outputs and ATW-R5220DAN that also includes a Dante output.

5000 Series components and compatible accessories are offered as individual, à la carte products to give you the greatest possible flexibility in constructing a system that fits your needs.

Please note that some frequency bands might not be available in your territory or could come with limited tuning bandwidth / transmitting power due to local regulations. For assistance with frequency coordination, please contact your regional Audio-Technica customer service representative.

• Handheld transmitter provides 120 MHz UHF tuning bandwidth (DE1: 470–590 MHz, EG1: 580–700 MHz, GH1: 700–820) for maximum versatility in an ever-congested RF environment
• Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Auto squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Dual compander circuitry processes high and low frequencies separately for unmatched audio quality
• Highly visible OLED transmitter screen (switchable between standard and performance views to highlight key metering)
• Six interchangeable microphone capsules (based on best-selling Audio-Technica models) that use industry-standard thread mount
• Robust, ergonomic full metal body with concealed soft-touch controls and IR sync functionality
• Programmable features and switchable 2/10/50 mW RF power
• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
• Wireless network monitoring and control software
• 5000 Series components are offered individually – not as preconfigured systems – for greater flexibility

“Dual compander for incredible audio quality”

Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

“Comprehensive tuning bandwith”

For maximum versatility in ever-congested RF environment the dual-channel receiver provides a tuning bandwidth of 230 MHz (DG1: 470–700 MHz.). Both transmitters (HH/ATW-T5202 and BP/ATW-T5201) are available in two different frequency ranges – DE1 (470–590 MHz) and EG1 (580–700 MHz) – to provide complete coverage of the receiver’s bandwidth.

“Interchangeable microphone capsules”

The ATW-T5202 comes with either an ATW-C4100 or ATW-C6100 dynamic interchangeable microphone capsule or an ATW-C3300 or ATW-C5400 condenser interchangeable microphone capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules.

Wide Bandwidth

Body-pack transmitter provides 120 MHz UHF tuning bandwidth (DE1: 470–590 MHz, EG1: 580–700 MHz, GH1: 700–820).

Interchangeable microphone capsule

The ATW-T5202 includes a high-pass filter and an industry-standard thread mount that allows for the use of six interchangeable A-T microphone capsules, as well as other compatible capsules.

backup frequency

Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered

OLED screens

Dual-mode, highly visible OLED receiver screen can switch between standard view or a performance view that highlights key metering
