PA R88

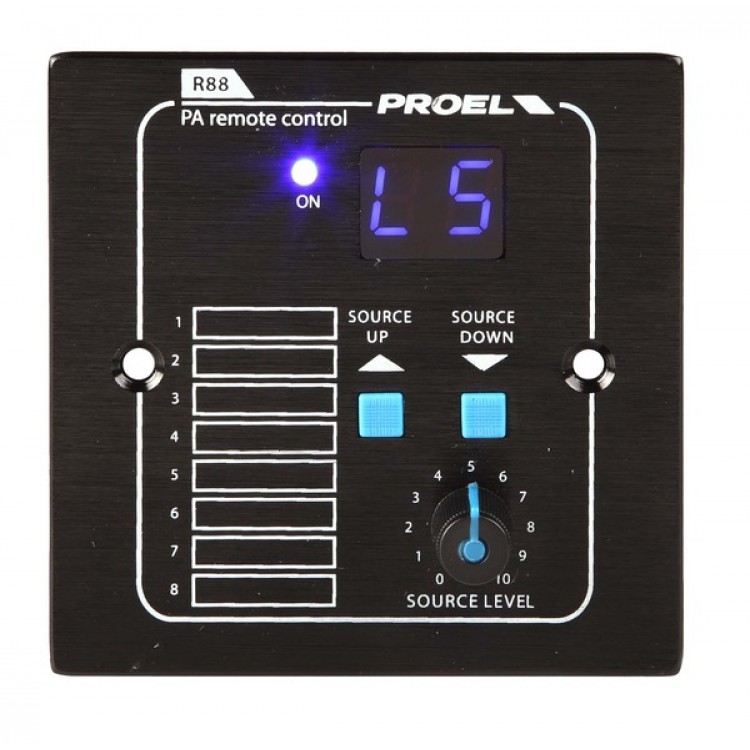

 R88 is a wall-mounted remote control to be combined with a MATRIX88 unit in the audio zone to which it is assigned. R88 controls the volume and the remote selection of 8 music programs, plus the OFF position and the Local Channel. The remote control panel features a LED display that shows which source is selected. The arrows scroll up and down the audio input channels and the 8 labels can be customized by the user to identify the sources. A UTP CAT5 cable provides power to the panel from the matrix if the cable run between the two is no more than 50 m. Whenever the cable length is longer than 50 m, an additional + 24 V DC power supply will be needed.   A wall-mounting metal box for R88  is available.

Technical Specifications

• Communication Speed: 57,600 bpsd
• Communication Distance: ≤ 1 km (in absence of external interference)
• Frequenci Response: 50Hz-18KHz
• Signal-to-Noise Ratio: BGM ≥75 dB
• Communication THD: 1% @1 kHz
• Power consumption: 400 mA
• Power Supply: 24 V DC
• Weight: 73 g
• Dimensions (L x H x D): 86 x 86 x 33 mm
