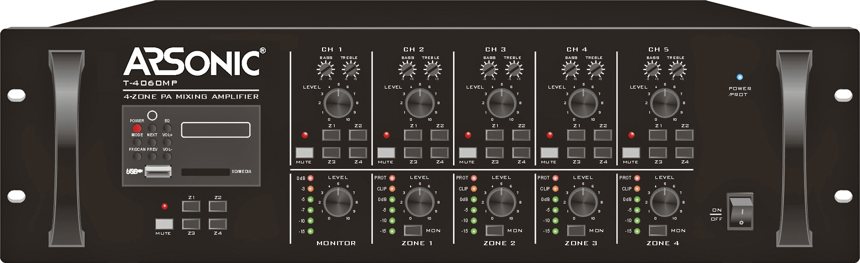

T–4060MP

The 4 channel mixer amplifier provides 60 and 120 W output power per channel. The matrix inputs and outputs can be selected to provide a 5×4 mixing matrix with an integrated MP3 player.

Ideal for hotels, shopping malls, fitness centers, entertainment centers, etc.

True 5×4 mixing matrix with priority paging and versatile extensibility of zone sizes.

• Four zone outputs to external equipment like power amplifiers
• Four channel amplifier outputs with 60 / 120 W each channel, gain level meter and monitor selector
• 70V, 100V, 4 Ohm outputs selectable
• 5 x 4 mixing matrix
• Three line/microphone inputs with phantom power
• MP3 player with remote control and USB/SD input
• 2 AUX inputs (RCA) for connection of external equipment (CD, etc.)
• RJ-45 port for connection of remote mic station T-4012
• Telephone paging input
• Priority contact
• RS-232 communication port
• Monitor output with 1 W, 8 Ohm for connection of small monitor loudspeaker
• 5 channels with gain, treble, bass control, zone selection
