TM23S
Pupitre de conférence avec écran tactile 22" au dessus et 32" en face
Description

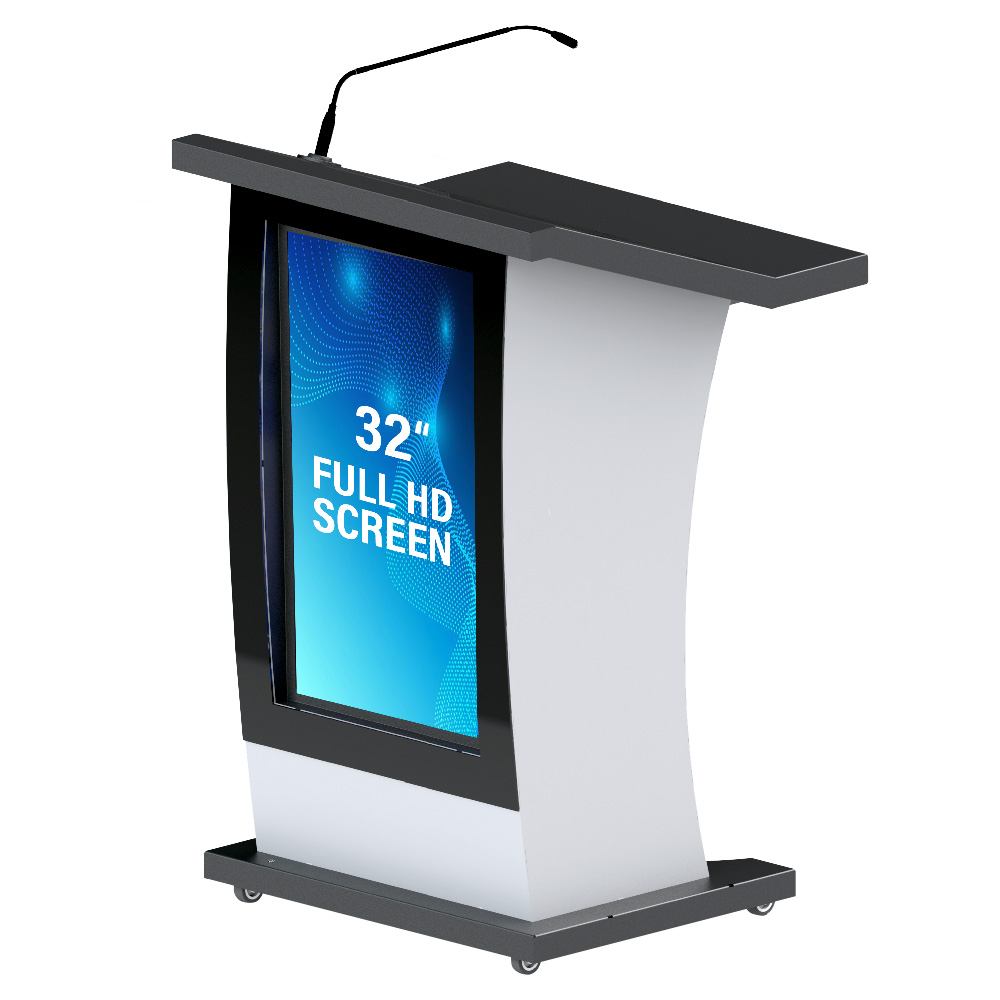

TM23S Digital Podium
TM23S is designed to satisfy the requirements in conference halls and hotels. Connecting projectors and audio systems to TM32S from its built-in connectors is easy. TM32S has the latest technology for meeting rooms, and lecture halls. It is equipped with personal computer, 32” front screen. it is also designed to beused as an stand alone product.
- MultiTouch Speaker Screen
- Front screen – with Embedded Signage Media Player
- Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
- Microphone
- Digital Touch Timer
- Creapen Annotation
| Model: | TM23S |
| Main Specifications | |
| Speaker Screen | 22″ Multi touch capacitive |
| Front Screen | 32″ with built-in signage media player |
| Built-in PC for Speaker Screen | intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT |
| Microphone | 1 pcs 18″ Gooseneck Condenser Microphone |
| Detailed Specifications | |
| Front Panel | 32″ |
| Screen Specifications | |
| Resolution | 1920×1080 FHD |
| Brightness | 350 cd/m2 |
| Aspect ratio | 16:9 |
| Panel Type | IPS |
| Front Panel Player | Built-in Digital Signage Media Player |
| Front Panel Content Management Software | Available |
| Lecturer Panel | 22″ |
| Screen Specifications | |
| Resolution | 1920×1080 FHD |
| Brightness | 250 cd/m2 |
| Panel Type | IPS |
| Aspect ratio | 16:9 |
| Touch Technology | Capacitive |
| Touch Points | 10 points |
| Lecturer Panel PC Specifications | |
| CPU | 4th Generation Intel Core i3 |
| RAM | 4 GB DDR4 |
| HDD | 120 GB SSD |
| Operating System | Windows Embedded 10 IoT |
| Microphone | |
| Length | 18″ |
| No of microphone | 1 pcs |
| Output Connector | 3-way XLR (Male) |
| Microphone Type | Cardioid |
| Frequency Response | 50 -18 kHz |
| Sensitivity (at 1,000Hz) | -60dB ± 3dB |
| Impedance | 220Ω |
| Power ON indicator | LED |
| Power requirement | Phantom Power (48V) |
| Timer & Chronometer | |
| Screen size | 3,5″ |
| Clock | Available |
| Timer | Available |
| Stopwatch | Available |
| Touch | Single touch |
| Inputs (on Speaker Panel) | |
| USB | USB 2.0 and USB 3.0 (for internal PC) |
| Outputs (Bottom of Podium) | |
| HDMI | Available |
| Ethernet | Available |
| XLR for microphone | Available |
| USB | USB 2.0 (for internal PC) |
| Power | |
| Power Input | 230V 50Hz |
| Power Consumption | 450W (max) |
| Peripherals &other features | |
| Color | Black speaker panel and base, gray body |
| Packing | Wooden box export packing |
| Mechanical Specs | |
| Outline Dimension (mm) | Set: 697 X 744 X 1157 |
| Package: 850 X 900 X 1350 | |
| Weight (kg) | Set: 62 kg |
| Package: 109 kg |
| Optional features | Front screen PC |
| Flight case |
