Extio F2408

Control Your Workspace
Download Datasheet
Where to Buy
Contact Us

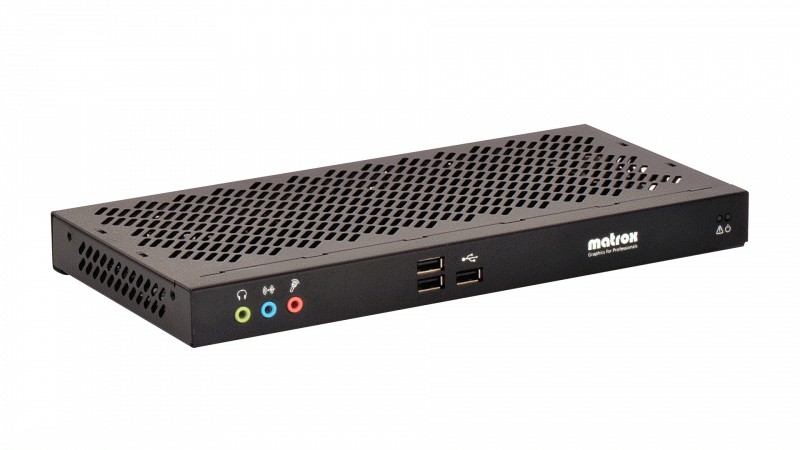

The Matrox Extio F2408 point-to-point, KVM extension solution separates the keyboard, mouse, audio peripherals and up to 4 displays from the rest of the computer by up to 1 km (3280 feet) via fiber-optic cable. The fiber-optic connection allows raw, uncompressed data to travel between the remote host system and the user-side Extio F2408 appliance, resulting in unmatched HD resolution support and uncompromised workstation performance. Designed for industries requiring stable, reliable, and scalable graphics, the Extio F2408 also allows room for expansion. Combine it with the optional Extio F2408E Expander to drive even more mission-critical displays – up to 8 in all, with a maximum resolution of 2560x1600 per display and this all from a single workstation, fiber-optic cable, and adapter.
Description

Extio F2408 Technical Specifications

Product
Part Number

Appliance: XTO2-F2408F
PCIe interface card:  XTO2A-FESLPAF
Connectivity
Video Output

Appliance:
4x DisplayPort 1.1
Link Connector

Appliance:
Dual-LC

PCIe Interface Card:
Dual-LC
USB Ports

Appliance:
5x USB 2.0 (Type A)

PCIe Interface Card:
1x mini USB 2.0 (Type B)
Audio Input

Appliance:
Line in 3.5 mm, mic in 3.5 mm
Audio Output

Appliance:
Line out 3.5 mm, headphone out 3.5 mm
Bus Interface

PCIe Interface Card:
PCI Express x1 electrical and mechanical
Performance
GPU

Matrox
Memory

2 GB
Video Resolutions

4x 2560x1600 (DisplayPort),
4x 1920x1200 (Digital, Analog)
Color Space and Chroma Sub-Sampling

RGB
8:8:8
USB Support

Keyboard, mouse, touch screens and other HIDs
Maximum Distance on Fiber-Optic Cables (Point-to-Point)

OM4 multi-mode (50/125 μm) - 400 meters  (1312 feet)
OM3 multi-mode (50/125 μm ) - 380 meters (1247 feet)
OM2 multi-mode 50/125 μm - 150 meters  (492 feet)
OM1 multi-mode 62.5/125 μm - 70 meters (230 feet)
OS1, OS2 single-mode 9/125 μm - 1 km / (3280 feet)
Physical
Product Dimensions

Appliance:
11.8 x 1.15 x 5.8 inches
29.97 x 2.92 x 14.73 cm

Interface Card (sold separately):
6.6 x 2.677 x 0.75 inches
16.76 x 6.8 x 1.91 cm
Cooling

Fanless
Power Supply Unit

External PSU

Lockable PSU Connector
Additional Features

Appliance:
2x LED Indicators (status and power)

Hardware & Software
Hardware Included

Appliance:
2x DisplayPort to DVI adapters
Universal, external, 12-volt-DC, 5-amp, power adapter
Power supply cable for various regions (North America / Japan, UK, Continental Europe, Australia)

PCIe Interface Card:
Matrox PCIe x1 interface card
Accessories (sold separately)

Single mode upgrade kit (XTO2-2SMTXF)
      • Consists of two transceivers that upgrades the host PCIe interface card and Extio F2208 unit to support extension distances above 400m (1312’) and up to 1 km (3280’).

DisplayPort™ to Analog (VGA) adapter
      • DisplayPort to Analog (VGA) adapter allows you to connect an analog monitor to the DisplayPort output of the Extio F2208 and Extio F2408.
      • Available from 3rd party vendors. Contact Matrox for details.

Matrox Extio F2408E Expander unit (XTO2EX-F2408F)
      • Expands the Extio F2408 with an additional 4 outputs enabling up to 8 displays at a maximum of 2560x1600. Revolutionary KVM extension over a single optical cable offering unprecedented display real-estate at a distance.
Software

Matrox Drivers and PowerDesk (free download)
General
Supported Operating Systems

Microsoft® Windows® desktop/workstation/server operating systems, and Linux (a detailed list is available here).
EMC/EMI Device Class

Class A
EMC/EMI Compliance

ACA

CE (EU)

FCC (US)

VCCI (Japan)
Warranty

Two-year limited warranty with free online or telephone support
