Splitter et distributeur HDMI 1x4 (4K HDR (6G), HDCP2.2, HDMI2.0, Scaling)
Description

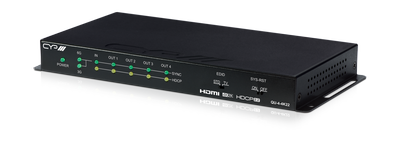

This QU-4-4K22 is more than just a Distribution Amplifier, it provides high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be 'Split' to the 4 x HDMI outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance.
When a mixture of displays with different specifications and resolutions are connected, each output can automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID requirements. CEC "active source" command can be enabled to periodically reset input selection on CEC compatible connected displays. This unit is controlled via front-panel switches with easy to read status LED's.
- HDMI with HDR 6G (HDR10/Dolby Vision support), 3D & 4K@60Hz support, DVI 1.0 compatible
- HDCP 2.2 and HDCP backwards compatibility
- 1x HDMI input and 4 x HDMI outputs
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
- Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
- Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
- Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
- Independent HDCP management engine for each output ensures stable HDCP performance
- Simple to use EDID management options
- Support for the CEC System Reset
- Controlled via front-panel switches
| Inputs |
1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB 3 Type B [1x Service Port Power & Data] |
| Outputs |
4x HDMI [4x HDMI Uncompressed AV and Data] |
| PSU: |
5V/2.6A |
| Dimensions |
231mm [W] x 117mm [D] x 25mm [H] |
| Net Weight |
668g |
| Gross Weight |
1090g |
