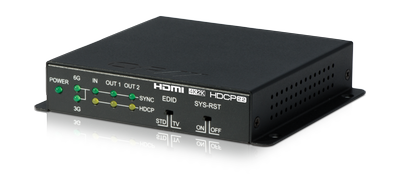

QU-2-4K22
Splitter et amplificateur HDMI 1x2 (4K, HDCP2.2, HDMI2.0, 18 GBPS)
Description
The QU-2-4K22 Distribution Amplifier (splitter) accepts one HDMI input and splits this signal to two identical outputs. This device supports 4K2K Ultra-High Definition video with HDMI2.0 and HDCP2.2 compliance. In addition, 3D Video signals and High Definition Audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192kHz are also supported.
When a mixture of displays with different specifications and resolutions are connected, each output can automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID requirements. CEC “active source” command can be enabled to periodically reset input selection on CEC compatible connected displays. This unit is controlled via front-panel switches with easy to read status LED's.
- HDMI 2.0, HDCP 2.2 and DVI compliant
- HDMI 1 to 2 splitter
- Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160 @24/25/30/60Hz
- Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
- Supports System Reset function (CEC active source command) allows the unit to reset the TV to its default HDMI input automatically
- HDMI input supports 'Standard' mode and 'TV' mode EDID settings
- Input and output status are indicated on the front panel
- HDMI with HDR 6G (HDR10/Dolby Vision support), 3D & 4K@60Hz support, DVI 1.0 compatible
- Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
- Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
- Independent HDCP management engine for each output ensures stable HDCP performance
- Controlled via front-panel switches
| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB 3 Type B [1x Service Port Power & Data] |
| Outputs | 2x HDMI [2x HDMI Uncompressed AV and Data] |
| PSU: | 5V/2.6A |
| Dimensions | 128mm [W] x 116mm [D] x 25mm [H] |
| Net Weight | 360g |
| Gross Weight | 1288g |
