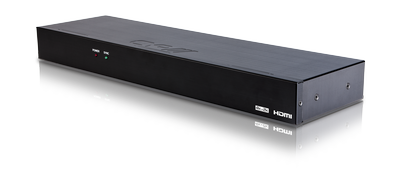

QU-16E-4K
Splitter HDMI 1x16 (4K Resolution Support)
Description
The QU-16E-4K is a versatile 1 to 16 HDMI distribution amplifier. This product is designed to be used in a 19” rack and will distribute uncompressed HDMI signals up to 4K resolutions. Each buffered output can run 1080p/8-bit up to 10 metres and can be cascaded up to two layers.
- HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- High Definition Audio supported : LPCM 7.1Ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz Fs sample rate)
- HDMI cable distance tested with 1080p/8bits resolution the I/O source can up run up to 15/15 meters. If 1080p/12bits the I/O source can run up to 15/10 meters.
- Supports xvYCC
- Supports 3D signals
- 4K Resolution Support
| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB Type B [1x Service Port Propriety Data] |
| Outputs | 16x HDMI [16x HDMI Uncompressed AV and Data] |
| PSU: | 5V/6A |
| Dimensions | 435mm [W] x 125mm [D] x 50mm [H] |
| Net Weight | 1320g |
| Gross Weight | 1720g |
