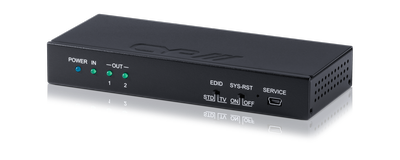

QU-12S
Splitter HDMI 1x2 avec reset
Description
The QU-12S Distribution Amplifier (splitter) accepts one HDMI input and splits this signal to two identical outputs. This device is compatible to v1.4 HDMI specifications, supporting resolutions up 4K30 / 4K50/60 4:2:0, High definition digital audio formats such as LPCM 7.1, with audio sampling rates up to 192kHz, Bitstream, and HD Bitstream. The QU-12S has standard EDID management and the System Reset functionality.
- HDMI 2.0 and DVI 1.0 compliant
- HDCP 1.4 compliant
- 1 HDMI input and 2 HDMI outputs
- Supports HD resolutions up to 4K@60Hz (4:2:0, 8-bit) / 4K@30Hz (4:4:4, 8 bit)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- System Reset function (CEC active source command)
- EDID management control including “Standard” (Internal EDID) mode and “TV” (External Display EDID) modes
| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB 3 Type B [1x Service Port Power & Data] |
| Outputs | 2x HDMI [2x HDMI Uncompressed AV and Data] |
| PSU: | 5V/1.2A |
| Dimensions | 77mm [W] x 161mm [D] x 25mm [H] |
| Net Weight | 305g |
| Gross Weight | 690g |
